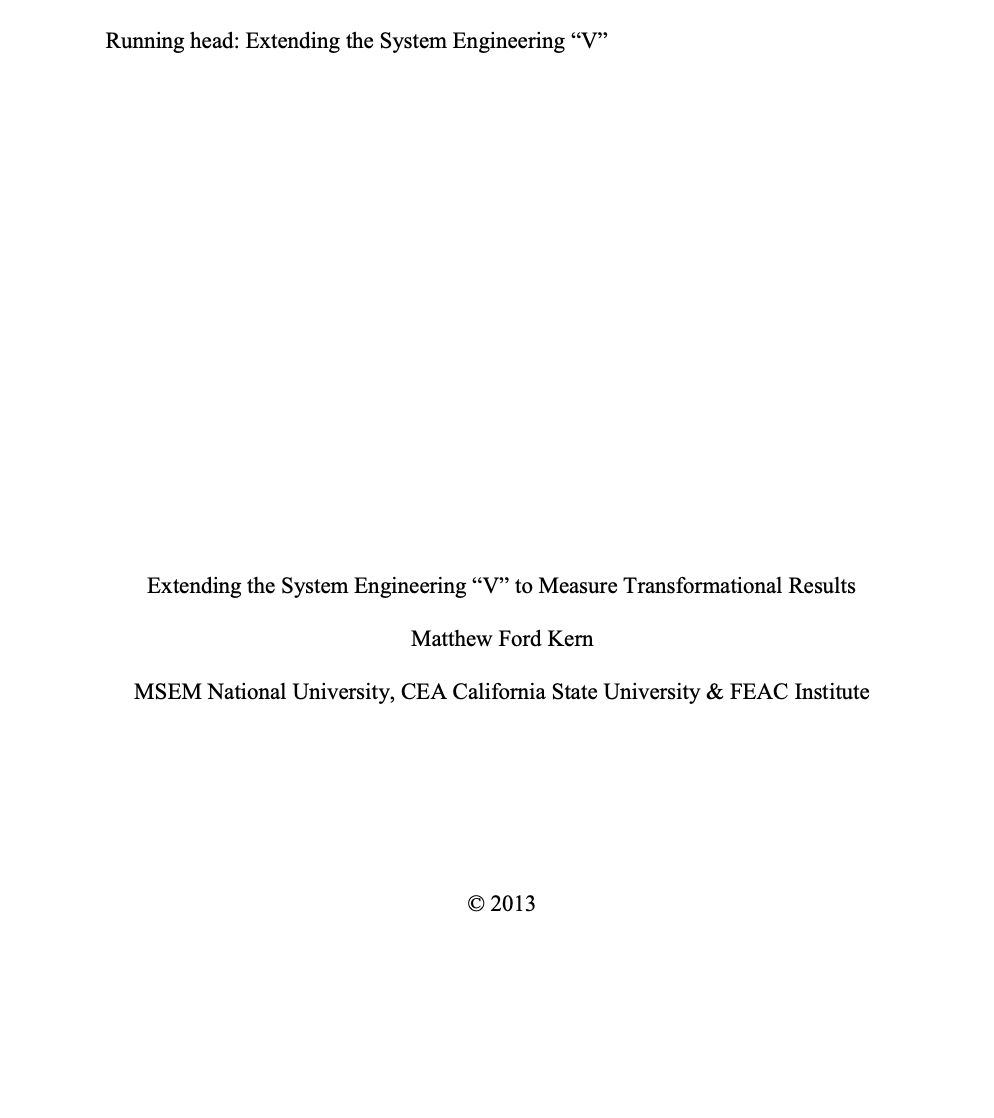

Extending the System Engineering “V” to Measure Transformational Results

[document] Submitted on 18 July, 2019 - 05:55
Keywords Extending the System Engineering “V” to Measure Transformational Results
Standards groups

In enterprise architecture an “alignment diagram” is an artifact that depicts the linkage of a system or other transformation through various levels of justification back to strategic goals. The combined model described here allows a new sort of alignment (line of sight) diagram as shown in figure 7. This can be used to show how each measure is derived from the level above, providing a visual kind of proof of alignment. It can also provide insight into missing measures. In the example in Figure 7 no MOEs and MOPs support the number of products in a production line or the time to market, indicating possible improvements in metrics to achieve the strategic goal of agility. Alignment shown in the example can be improved significantly.

Metadata
Date published
2013
Document type
technical white paper
Pages
12
Replaced/Superseded by document(s)
Cancelled by
Amended by
File MIME type Size (KB) Language Download
Extending_the_System_Engineeting_V (RJH commented) 140305.pdf application/pdf   446.15 KB English DOWNLOAD!
File attachments
Author(s)
Matthew Ford Kern
